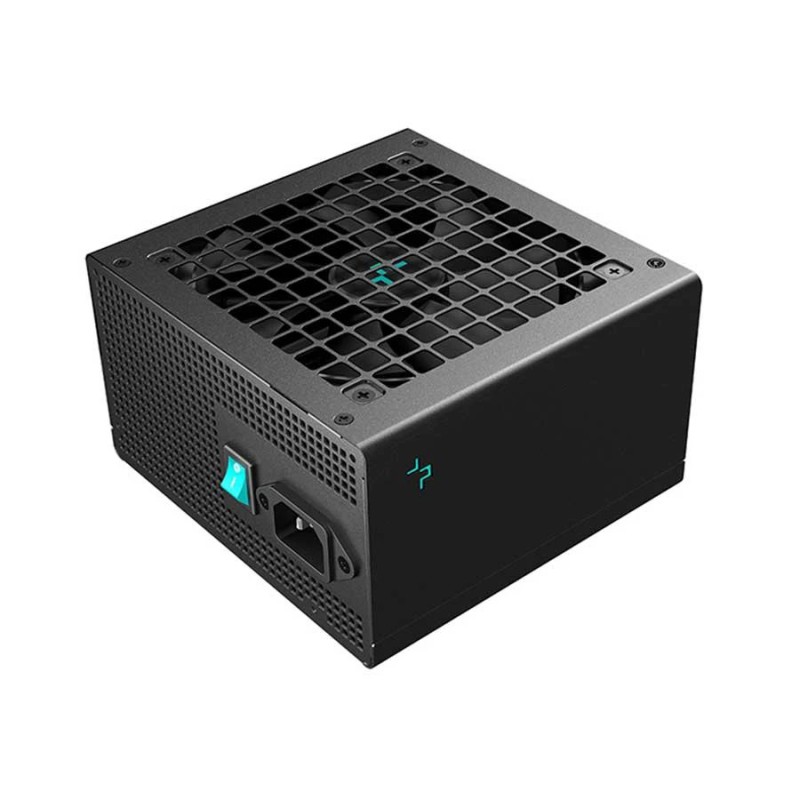

DeepCool PN850M 850W 80 Plus Gold Fully Modular Power Supply

DeepCool PN850M 850W 80 Plus Gold Fully Modular Power Supply

The DeepCool PN850M 850W Fully Modular Power Supply is built for users who demand peak performance, premium efficiency, and full compatibility with the latest PC hardware. Certified to meet Intel ATX 3.1 and PCIe 5.1 standards, this PSU is perfect for powering high-end gaming rigs, workstations, and next-generation GPU setups.

Modern Power Delivery with PCIe 5.1 Support

Equipped with five EPS/PCIe ports and a dedicated 12V-2x6 connector, the PN850M can handle the latest GPUs and CPUs, including those that draw high transient power. It delivers up to 2× total system power for 0.1ms bursts, maintaining rock-solid system stability even under sudden load spikes—ideal for today’s demanding graphics cards.

80 Plus Gold & Cybernetics Gold Certified Efficiency

This PSU is 80 Plus Gold certified, offering up to 90% efficiency under typical loads, which reduces heat and saves power. Its Cybernetics Gold rating confirms outstanding performance in both efficiency and low acoustic output, making it a top-tier choice for quiet builds.

Premium Japanese Components & Advanced Circuit Design

Built for longevity and stability, the PN850M uses:

• Main Japanese electrolytic capacitor

• Full-bridge Series Resonant Converter (SRC) LLC

• Active Power Factor Correction (PFC)

• DC-to-DC topology

This ensures clean, regulated power output with a minimum 16ms hold-up time at 80% load, minimizing the risk of system crashes during power dips.

Fully Modular Cabling for Clean Builds

The fully modular design simplifies cable management and improves airflow. Included are pre-sleeved high-quality cables, including a 12V-2x6 cable made of durable 16AWG copper core, capable of delivering up to 600W—perfect for NVIDIA RTX 40-series and AMD Radeon RX 7000-series GPUs.

Quiet & Intelligent Cooling

The PSU features a 120mm Fluid Dynamic Bearing (FDB) fan that dynamically adjusts speed based on load and temperature. This ensures efficient cooling during heavy tasks and silent operation during low-demand scenarios.

Built for Durability & Safety

Capable of operating at altitudes up to 5000 meters, the PN850M is designed for reliable performance in diverse environments. It also includes comprehensive industrial-grade protections:

• OPP – Over Power Protection

• OVP/UVP – Over/Under Voltage Protection

• OCP – Over Current Protection

• OTP – Over Temperature Protection

• SCP – Short Circuit Protection

• SIP – Surge and Inrush Protection

• NLO – No Load Operation

Key Features:

• 850W power output for high-performance systems

• Fully modular for easier cable routing and better airflow

• Intel ATX 3.1 and PCIe 5.1 compliant

• 12V-2x6 cable (16AWG) supports up to 600W

• 80 Plus Gold & Cybernetics Gold certified

• Quiet 120mm FDB fan with smart RPM control

• Hold-up time ≥ 16ms @ 80% load

• Durable and altitude-resistant design

• Backed by DeepCool’s warranty and support

The DeepCool PN850M is a future-ready, premium power supply solution perfect for powering enthusiast PC builds, gaming machines, or content creation workstations. Now available at SkyLandBD — your trusted destination for original PC components in Bangladesh.
