Cudy PE10G 10 Gbps Gigabit PCI Express Network Adapter
Key Features
- Speeds up to 10 Gbps RJ‑45 port
- Backwards compatible with 1/2.5/5 Gbps
- PCIe x4/x8/x16 slot compatible
- Standard + low‑profile brackets included
- Energy‑Efficient Ethernet, flow control, WoL
Specification
| General | |
| Brand | Cudy |
| Model | PE10G |
| Key Features | |
| Antenna | No |
| OS Support | Windows 10/11 64Bit, WindowsServer 2022, Linux, DSM 7.2+ |
| Interface | 10G RJ45 Ports |
| Network & Connectivity | |
| AP Mode | No |
| Data Rate | 10 Gbps |
| Frequency | Not Applicable |
| Temperature | |
| Operating Temperature | 0 Degree C - 65 Degree C |
| Storage Temperature | -40 Degree C - 70 Degree C |
| Physical Specification | |
| Color | Black & Red |
| Weight | 84.5 g |
| Dimension | 71.5 x 50 x 1.6mm |
| Technical Specification | |
| Storage Humidity | 5% - 95% non-condensing |
| USB Version | No |
| Working Humidity | 10% - 90% non-condensing |
| What's in the Box | |
| Packet Contents | Cudy PE10G, Low-Profile Bracket, Installation Guide, Ethernet Cable |
| Warranty Information | |
| Warranty | 1 year |
Description

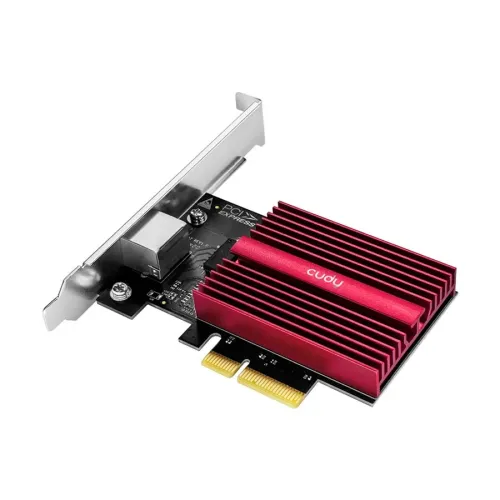

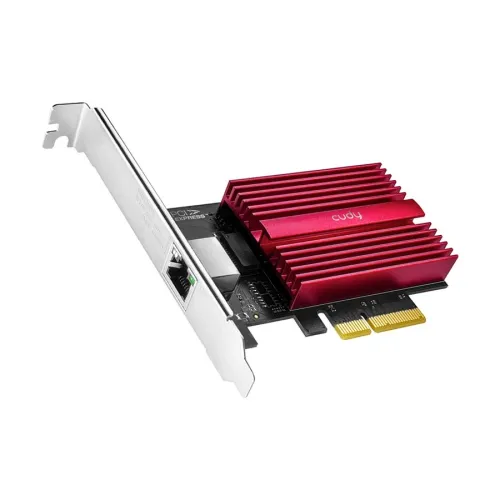

The Cudy PE10G is a wired network adapter designed to bring ultra‑fast 10 Gbps Ethernet connectivity to desktops and servers. It uses an AQC113 chipset and supports multiple link speeds (10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps), allowing backward compatibility for slower networks while delivering top performance when the infrastructure allows. The card fits into any PCI‑Express x4 (or larger) slot and comes with both standard‑height and low‑profile brackets so it can be installed in full‑sized towers or compact cases. Features like Energy‑Efficient Ethernet (EEE), flow control, and Wake‑on‑LAN enhance power savings, data reliability, and remote management, respectively. With a single RJ45 port, it’s ideal for NAS, media editing, server builds, or future‑proofing a high‑speed network setup.
